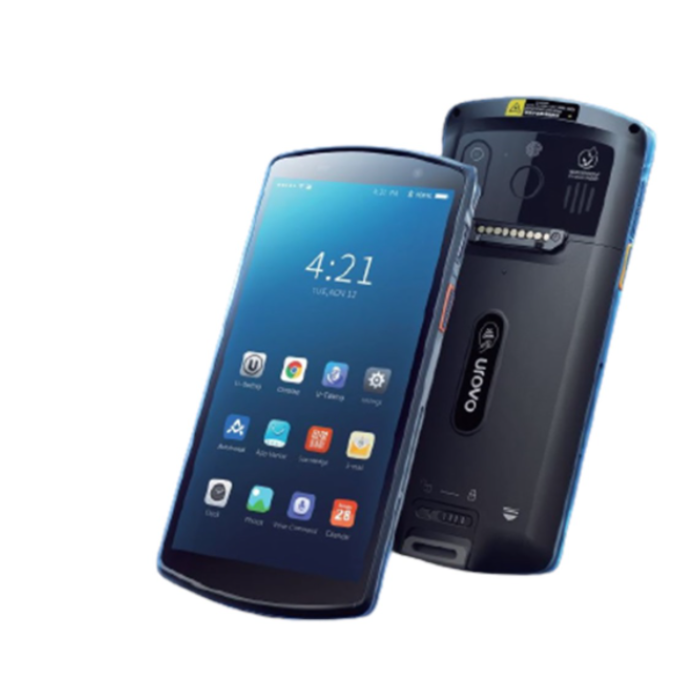

SPECIFICATIONS DT50
PERFORMANCE CHARACTERISTICS FINGERPRINT VERSION
CPU
Memory
Octa-core 1.8GHz
RAM: 4GB, ROM:64GB
Optical
Sensor
FBI PIV and FBI Mobile ID FAP20 certificates Captures
high-qulity fingerprint images, distinguishes fake fingerprints
made from various materials assuring highest security.
O.S. Android 9.0
DATA CAPTURE
Scanning 1D/2D imager
PHYSICAL CHARACTERISTICS
Display
Touchpanel
5.7" TFT-LCD
720*1440 pixels
1080* 2160 pixels (Optional)
Camera
NFC
Front - 5MP
Rear - 13MP auto-focus color rear camera with flash
ISO 14443 Type A and B; FeliCa/Mifare and ISO
15693 cards;
Reader mode, P2P mode, Card Emulation mode Apple
Multi-touch Enhanced Contactless Polling(ECP)
Dimensions
(L×W×H)
Weight
162.6mm× 76mm×13.6mm
6.4in× 3in× 0.53in
250g/8.8oz (include battery)
WIRELESS WAN DATA AND VOICE COMMUNICATIONS
TD-LTE(B34/B38/B39/B40/B41)
Power
Micro-SD
Rechargeable 3.85V 4300mAh lithium polymer battery
pack(Typical Operation time ?10 hours) Support QC4.0
quick charge, charging time less than 3 hours
Micro SD card, up to 128GB extensions
Radio
Frequency
Band
FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28A/B28B)
WCDMA(B1/B2/B4/B5/B8)
TD-SCDMA(B34/B39)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)
CDMA 1x
GSM/EDGE/GPRS(850/900/1800/1900)
SIM 2×Nano-SIM slots
Notification
Buttons
LED, Speaker, Vibrator
Scan button ×2, Power button, Volume +/- button,
User definable button
Dual-microphone support with noise cancellation,high
GPS
Vo-LTE
Concurrent GPS; GLONASS; Gallileo; BeiDou,
and A-GPS
Support Vo-LTE HD video voice call
Audio quality speaker, PTT headset support;
cellular circuit switch voice
WIRELESS LAN
ENVIRONMENTAL
WIFI
Data Rates
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w,2X2 MU-MIMO
5GHz:802.11a/n/ac --- up to 866.7Mbps
2.4Ghz:802.11b/g/n --- up to 300Mbps
Operating
Temperature
Storage
Temperature
Humidity
Drop
Specification
Tumble
Specification
- 20°C ~ 60°C (-4°F~140°F)
- 40°C ~ 70°C (-40°F~158°F )
5%RH ~ 9 5%RH(non condensing)
Multiple 5 ft./1.5 m drops on concrete across full
operating temperature range.
400 roller drops of 1m, with a frequency of 10
roller test per minutes
Operating
Channels
Security and
Encryption
Fast Roaming
2.4G: 1-13(Depend on regulatory rules & certification
agency)
5G: 36,38,40,42,44,46,48,52,56,60,64,100,104,
108,112,116,120,124,128,132,136,140,149,153,
157,161,165
WEP;WPA/WPA2-PSK(TKIP and AES);WAPI-PSK-EAPTTLS,
EAP-TLS,PEAP-MSCHAPv2,PEAP-LTS,PEAPGTC,
PWD, SIM, AKA
PMKID caching, 802.11r, OKC
Thermal Shock - 40°C ~ 70°C (-40°F~158°F ) rapid transition WIRELESS PAN
Sealing
IP67 Bluetooth BT5.0 + BR/EDR + BLE
ESD
±15kV air discharge; ±8kV direct discharge
INTERACTIVE SENSOR
Sensor
Acceleration sensor, light sensor, proximity sensor,
