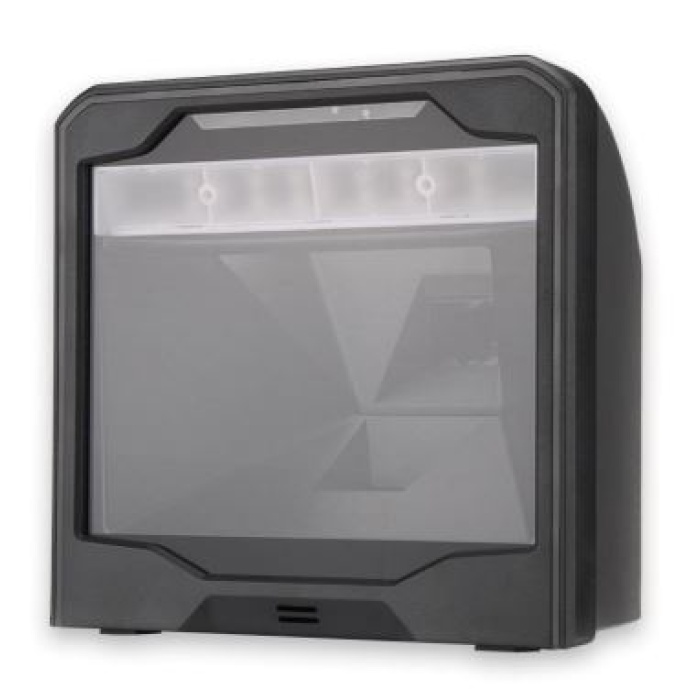

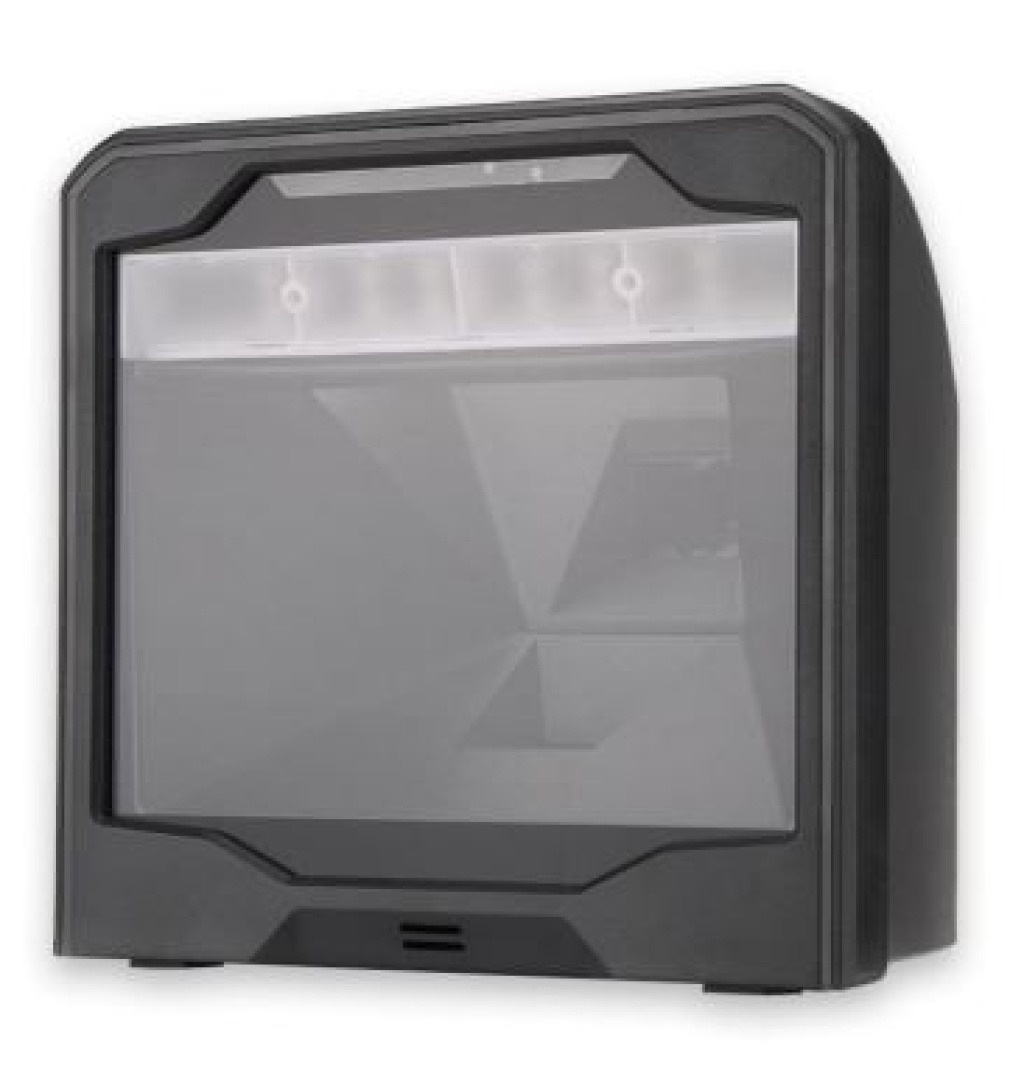

Tscan Ts-73 Image Masa üstü Barkod Okuyucu

1D Codes: ▲

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5,
Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc

2D Codes: ▲

PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc

Postal Codes: ▲
Optical System: CMOS
Resolution: 1280*720
Light Source: 650nm LED
Illumination: Red LED
Recognition Accuracy: 5mil
Min. Contrast: 25%
Scan Angle: Roll: 360° , Pitch: ±60° , Skew: ±65°
Depth of Field: Code 128 (5mil) 0mm~60mm
QR Code (15mil) 0mm-200mm
Interfaces: USB/ RS-232(option)
Cable Length: 150cm
Dimensions: 104 x 96 x 166mm (LxWxH)
Weight: 300g
Material: ABS Plastic
Feedback: Beep, LED indicator
Drop: 1.0m
Sealing: IP5X
Operating Voltage: 5VDC±5%
Electric Current: Operating: 190mA±10mA , Standby: 10mA
Operating Temperature: Operating: 0°С to 50°С (32°F to 122°F); Storage: -4°С to 70°С (-40°F to 158°F)
Humidity: 5%~95% (non-condensing)
Certifications: FCC Part 15 Subpart B Class B, CE EMC 2014/30/EU, RoHS 2011/65/EU
